Classification

Introduction

The efficiency and descriptive power of graph mining is enhanced when the algorithms are able to distinguish between different types of nodes and edges. Graph mining in PyeMap relies on each node and edge in the graph database being assigned a numerical label which corresponds to its category. PyeMap offers some customization of these labels in order to broaden or narrow the search space.

Nodes

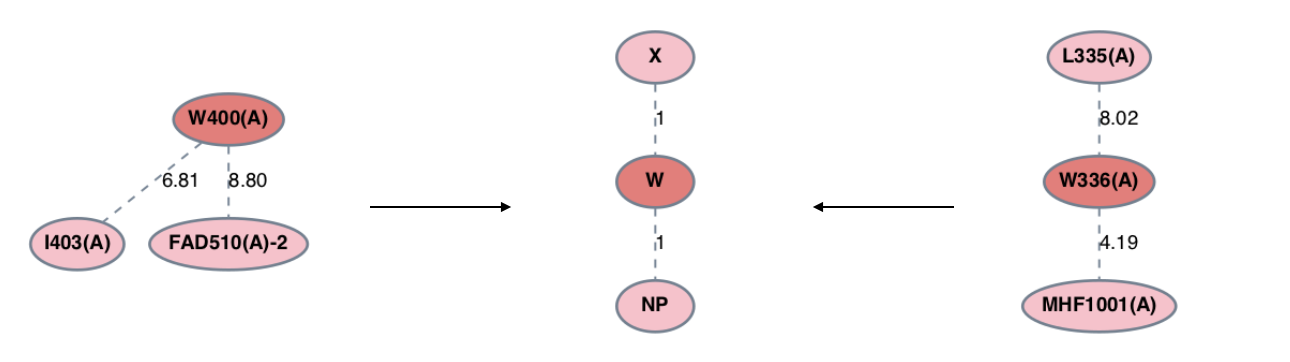

By default, each standard amino acid residue receives its own category, and all non-standard residues included in the analysis are labeled as ‘NP’ for non-protein (processed internally as ‘#’). One can specify a group of standard amino-acid residue types to be given the label ‘X’ (which is standard notation for unknown residue type), which enables these residues to be substituted for another in subgraph patterns. This is done by passing a list of 1-letter amino acid characters as the sub keyword argument to generate_graph_database().

Example

Set isoleucine and leucine to be given the label ‘X’ in subgraph patterns.

pg.generate_graph_database(sub=['I','L'])

Edges

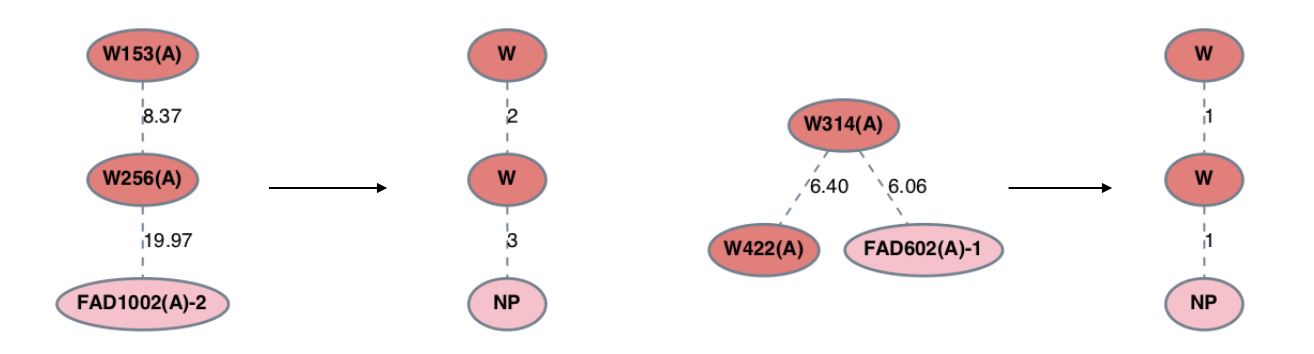

By default, all edges are assigned the same numerical label of 1. One can classify edges based on their weights by passing the edge_thresholds argument to generate_graph_database(). edge_thresholds should be formatted as a list of floats in ascending order, where each value indicates a cutoff threshold for an edge category.

Example

pg.generate_graph_database(edge_thresholds=[8,12])
